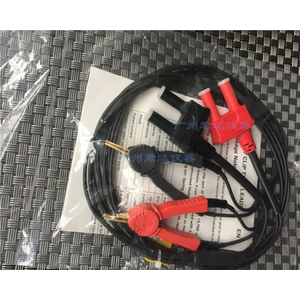

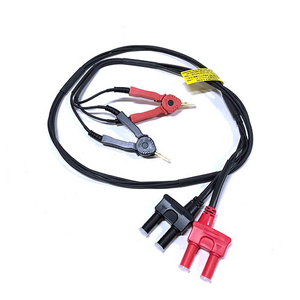

Đầu đo L2107

Hioki portable power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The SF1001 is a software application for graphing measurement data captured with the PW3360/3365 series, 3169 series Clamp On Power Loggers using a computer.

Bộ pin sạc NiMH PW9002 Hioki Được sử dụng cho các dòng máy PW3360 hoặc PW3365

Pin sạc NiMH Z1003 Hioki Sử dụng cho các dòng máy Hioki : PW3198, PQ3100, PQ3198,....

CAT IV 600 V, CAT III 1000 V Key Features • Thinner cables are easier to use in confined spaces and with complicated wiring • Supports large current measurements up to 6000 A • Wide 10 Hz to 50 kHz band with excellent frequency characteristics • Choose from three conductor diameter sizes • Ideal for site inspections by using detachable Display Unit • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz

Dòng đầu vào : AC 5000A ~ 500A Độ chính xác :±2% rdg. ±0.3% f.s. Độ chính xác pha :±1° (45 to 66 Hz) Dòng chuyển qua lớn nhất : Liên tục 10000A rms (45-60Hz) Tần số làm việc : 10 Hz ~ 20kHz Điện áp lớn nhất : 1000V AC

Dải đo: AC 10 A (cho dòng rò rỉ 50/60 Hz) - Dòng điện ngõ vào lớn nhất cho phép(45-66 Hz): Max. 10 A (đo liên tục) - Dải ngõ ra: AC 100 mV / A - Độ chính xác Amplitude (45-66 Hz): ± 1.0% RDG. ± 0,005% f.s. - Độ chính xác Phase : ± 5 ° ( 50 Hz hoặc 60 Hz) - Đặc tínhTần số : 40 Hz đến 5 kHz: ± 5%

Dải đo: AC 10 A (để đo rò rỉ hiện nay, 50/60 Hz) - Dòng vào lớn nhất cho phép (45-66 Hz): Max. 30 A (đo liên tục) - Dải dòng điện ngõ ra: AC 100 mV / A - Độ chính xác Amplitude (45-66 Hz): ± 1.0% RDG. ± 0,05% f.s. - Độ chính xác Phase: ± 3 ° (tại 50 Hz hoặc 60 Hz) - Đặc tính tần số : 40 Hz - 5 kHz: ± 3%

Dải đo: 100 A AC - Dòng lớn nhất cho phép: 130A rms (45-66 Hz) - Điện áp đầu ra: AC 1 mV / A - Độ chính xác biên độ: ± 0,3% RDG. ± 0.02% f.s. (45-66 Hz) - Độ chính xác Phase: ± 1 ° (45-5 kHz) - đặc trưng tần số 40 Hz đến 5 kHz: ± 1.0%

Dải đo: 50 A AC - Dòng lớn nhất cho phép: 60A rms (45-66 Hz) - Điện áp đầu ra: AC 10 mV / A - Độ chính xác biên độ: ± 0,3% RDG. ± 0.02% f.s. (45-66 Hz) - Độ chính xác Phase: ± 2 ° (45-5 kHz) - đặc trưng tần số 40 Hz đến 5 kHz: ± 1.0%

Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9694 is a 5A AC clamp sensor with voltage output for measuring load current. CAT III 300V Key Features • For inverter devices or commercial power lines • For measuring the secondary side of 5A CTs • Fits in narrow spaces due to compact design

Giải dòng : 1000A AC Điện áp ra : AC 500mV f.s (AC 0.5mV/A) Độ chính xác : ±1.0 % rdg. ±0.01 % f.s Độ chính xác pha : ±1° (at 45 Hz - 5 kHz)

Dải đo dòng : AC 500A Điện áp ra : AC 500mV f.s (AC 1mV/A) Biên độ chính xác : ±0.3 % rdg. ±0.01 % f.s.

Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9660 is a 100A AC clamp sensor with voltage output for measuring load current. CAT III 300V Key Features • For inverter devices or commercial power lines • Fits in narrow spaces due to compact design

Dải đo: 20A- 1000A AC, 6 dải - Độ chính xác ± 3% RDG. ± 0,2% f.s. (45-66 Hz) - Dải đầu ra: 0.2 V AC f.s.

Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9018-50 is a multi-range 500A AC voltage output clamp sensor with superior phase characteristics for capturing waveforms with DMMs and Memory HiCorders. Measure AC current on live power lines without needing to cut the wire.

Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9010-50 is a multi-range 500A AC voltage output clamp sensor for capturing waveforms with DMMs. Measure AC current on live power lines without needing to cut the wire. CAT III 600 V Key Features • Economical clamp sensors for waveform recording with Memory HiCorders • Choose from up to six general-purpose ranges

1 m (3.28 ft) length

1 m (3.28 ft) length

70 cm (2.30ft) length, detachable large alligator clips or needle tips are bundled, CAT IV 600V, CAT III 1000V

A:750 mm (29.53 in), B:215 mm (8.46 in), L:1880 mm (6.17 ft), for high voltage battery measurements, 1000 V DC max.

2 m (6.56 ft) length

A: 280 mm (11.02 in), B:149 mm (5.87 in), L:1.5 m (4.92 ft)

A: 250 mm (9.84 in), B:176 mm (6.93 in), L:1.5 m (4.92 ft)

A: 250 mm (9.84 in), B:178 mm (7.01 in), L:1.5 m (4.92 ft)

A: 250 mm (9.84 in), B:84 mm (3.31 in), L:1.5 m (4.92 ft)

A: 70 mm (2.76 in) (Red), 150 mm (5.91 in) (Black, up to 630 mm (24.8 in)), B: 164 mm (6.46 in), L: 1941 mm (76.42 in) (Red)

Cable length 1.5 m (4.92 ft) length

Cable length 1.5 m (4.92 ft) length

DC to 8MHz, 50Ω termination • Tip electrode spacing: 0.3 to 6 mm • Measurable sample size: 0603 (EIA)

Cable length 1 m (3.28 ft), DC to 8 MHz, impedance characteristics of 50 Ω, 4-terminal pair configuration, measurable conductor diameter: ø0.3 (0.01 in) to 5 mm (0.20 in)

The SP3000 is a non-contact AC voltage waveform probe ideal for maintenance applications involving device control signals and sensor signals. Simply apply the probe to a cable outside its insulation cover to capture the signal without exposing the technician to electrocution. Key Features • Observe waveforms with an oscilloscope or a Hioki Memory HiCorder by visualizing signals from electric equipment simply by applying the probe to the wire’s insulation • Capture LIN and other communications

The SP7001 and SP7002 are CAN and CAN FD signal sensors that use non-contact technology to accurately capture CAN bus signals necessary for vehicle and next generation equipment evaluation and development. Improve testing productivity and efficiency by eliminating the need to peel away cable insulation or use a sub-harness that is traditionally required to obtain signals. Key Features • Acquire CAN data immediately, simply by hooking probes to the cables • Eliminate concerns by using non-contac

Test Lead L9207-10 L 90cm

AC FLEXIBLE CURRENT SENSOR CT6280 Dùng cho Model 3280-10F hoặc 3280-20F

PIN TYPE LEAD 9772 HIOKI A 45mm, B 173mm, L1880mm

PIN TYPE LEAD 9465-10 A 45mm, B 176mm, L 1883mm
