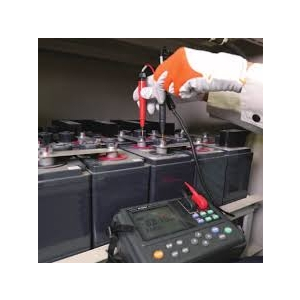

Thiết bị đo nội trở Ắc quy

BT3554

Hioki- Nhật Bản

12 tháng

300 times better noise resistance • Max. 1000 V output : SM7110 • Max. 2 × 10^19 Ω display • Min. 0.1 fA resolution • Built-in EXT I/O, LAN, RS-232C, GP-IB and USB

Number of channels 1 ch
DC current measurement 20 pA range (0.1 fA resolution), Accuracy: ±(2.0 % of rdg. +30 dgt.)
200 pA range (1.0 fA resolution), Accuracy: ±(1.0 % of rdg. +30 dgt.)
2 nA range (10 fA resolution), Accuracy: ±(0.5 % of rdg. +20 dgt.)
20 nA range (100 fA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)
200 nA range (1 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)
2 μA range (10 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)
20 μA range (100 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)
200 μA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)
*2 mA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +30 dgt.)
(1) Measurement speed SLOW2 (internal integration time 13PLC)
(2) At a temperature of 23 °C ±5 °C with humidity of 85% rh
(3) 2 mA range (Measurement speed FAST only)
Resistance measurement capabilities 50 Ω to 2 × 10 ^19 Ω
Note: Resistance measurement accuracy is defined by the current range accuracy and voltage setting accuracy.
Setting voltage range (Accuracy) 0.1 to 100.0 V, 100 mV resolution, Accuracy: ±0.1 % of setting ±0.05% f.s.
100.1 to 1000 V, 1 V resolution, Accuracy: ±0.1 % of setting ±0.05% f.s.
Current Limiter 0.1 to 250.0 V: 5/ 10/ 50 mA, 251 to 1000 V: 5/ 10 mA, to 2000 V:1.8 mA
Measurement time setting Delay: 0 to 9,999 ms
Functions Comparator measurement, deviation measurement, percentage measurement, surface resistivity, volume resistivity, voltage monitor, contact check
Program function 10 types of discharge, charge, measure and measurement sequence discharge patterns can be programmed.
Display LCD (8 lines of 30 characters), with backlight, High voltage warning indicator
Interfaces GP-IB, RS-232C, USB or EXT I/O Interface
Power supply 100 to 240V AC , 50/60 Hz, 45 VA
Dimensions and mass 330 mm (12.99 in)W × 80 mm (3.15 in)H × 400 mm (15.74 in)D, 6.7 kg (236.3 oz)
Accessories Power cord ×1, Instruction manual ×1, short plug ×1,CD-R (driver) ×1, EXT I/O male connector ×1



Opptions:

Measurement Leads





PIN TYPE LEAD (RED) L2230

1 m (3.28 ft) length



PIN TYPE LEAD (BLACK) L2231

1 m (3.28 ft) length



CLIP TYPE LEAD (RED) L2232

1 m (3.28 ft) length



CLIP TYPE LEAD (BLACK) L2233

1 m (3.28 ft) length

OPEN LEAD (RED) L2234

3 m (9.84 ft) length



OPEN LEAD (BLACK) L2235

3 m (9.84 ft) length

PC communication





RS-232C CABLE 9637

For the PC, 9 pins - 9 pins, cross, 1.8m (5.91 ft) length



RS-232C CABLE 9638

For the PC, 9 pins - 25 pins, cross, 1.8m (5.91 ft) length



GP-IB CONNECTOR CABLE 9151-02

2 m (6.56 ft) length

Other



Note: Other measurement electrodes are available

HUMIDITY SENSOR Z2011

1.5 m (4.92 ft)



Interlock Connection Cable DSM8104F



0.1 m (0.33 ft) length
